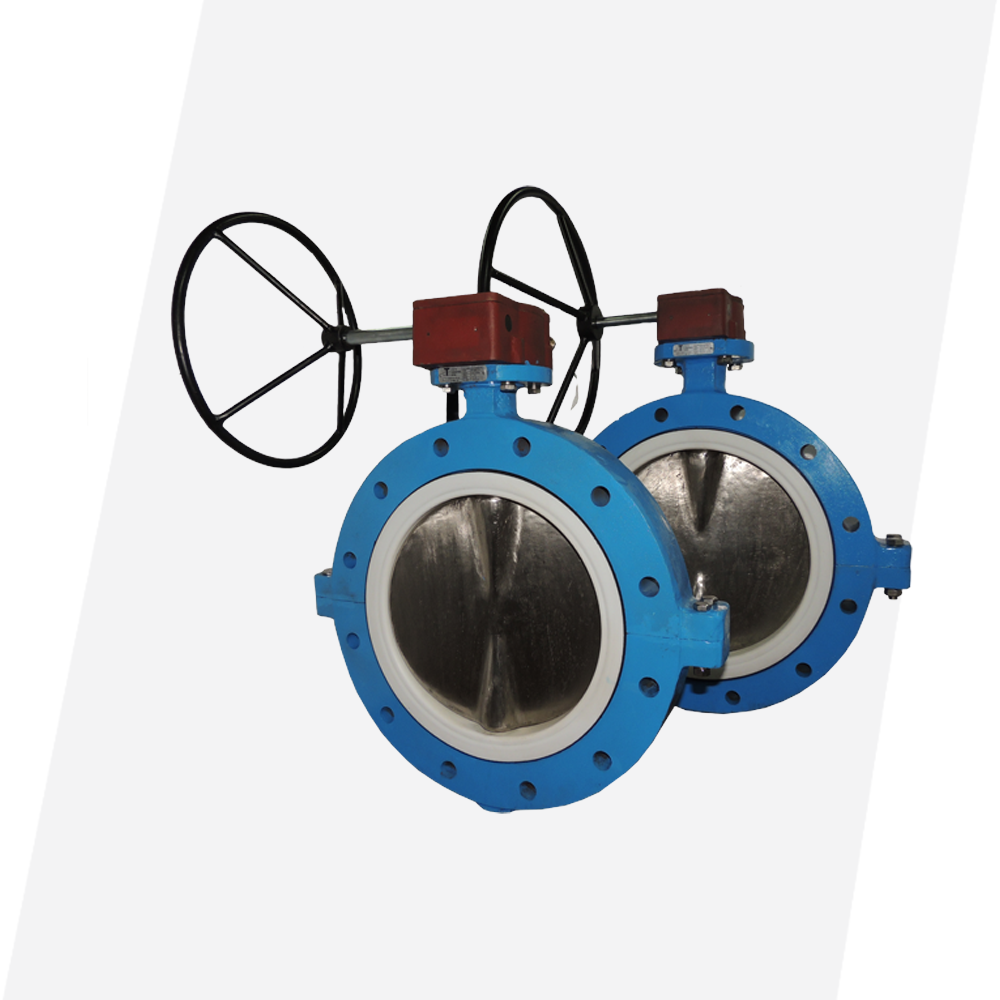

Teflon Lined / Seated Butterfly Control Valve

₹429.00

SERIES 799 Wafer / 792 Lug

TDK offers Customized End to End to Solution for all your PTFE Seated Butterfly Valves. Our Unique Butterfly Valve design ensures hassle free and reliable performance for all your specific Service conditions since last 30 years.

Depending upon your service conditions we customize the Valves in design and offer the same in all Exotic Alloys like TITANIUM, HAESTALLOY C-22, R-55, S.S 904-L, ALLOY-20, DUPLEX, S.S.316/S.S.316L, PFA encapsulated etc, selected in consultation with the Buyer.

Size 50 mm to 600 mm

Download Catalogue

TDK BUTTERFLY VALVE DESIGN FEATURES

  • TDK Teflon /PTFE Seat is Backed up with Elastomer Rubber molded together to form a single Piece which is superior Seat Design as compare to loose back up traditional design provided by other manufacturers.
  • As seen in the photograph TDK molded PTFE Seat there is no chance for relative movement /displacement between back up Rubber & PTFE SEAT as they are molded & bonded together. This design ensures reliable performance of Valve in Vacuum & High-Pressure service.
  • TDK PTFE SEAT there is no Air Lock between PTFE & Rubber backing which reduces bulging issues of Seat when the Valves to be used under Vacuum Service.
    Caution: PTFE SEATS with Loose Rubber Back up provided by other manufacturers tend to be sucked in Vacuum application resulting in premature failure of the Valve.
  • TDK PTFE MOULDED SEAT is tightly secured in the dovetail Geometry of body when tightened between the Flanges Providing a Rigid Fitment as compared to LOSSE RUBBER BACK UP PTFE SEAT design where there is no Elasticity to achieve the Flange Sealing & requires additional Gasket. TDK Valve seats provide 100% face sealing between Valve flanges as Rubber backup is Integral part, covering PTFE SEAT face from inside as seen in photograph & no additional gasket required.
  • TDK Integral PTFE Rubber Moulded seat provides the required elasticity for Continuous operation & results in leak proof solution for a longer period of time. Due to integral moulded design TDK SPARE PTFE seats are very easily field replaceable for maintenance purpose & thus user friendly for replacement re-hauling of Valves.
SIZE RANGE:50 MM TO 600 MM
DESIGN/MANUF. STD:ISO 5752, API 609, MSS SP 67, IS-13095, BS 5155
END CONNECTIONS:Wafer, Lug, Flanged
FLANGE. STANDARD:ASA 125/150, BS-10 TABLE D / END-10, JIS-10 K
PRESSURE RATING:150 PSI & Full Vaccum
TESTING:API 598
Size MM A B B1 C D
50 75 160 125 26 48
65 80 175 140 49 64
80 90 180 150 62 73
100 118 195 170 90 100
125 140 220 122 130
150 145 235 138 144
200 180 270 191 195
250 205 320 241 245
300 245 355 291 295
350 290 415 328 331
400 305 460 376 382
450 350 495 429 435
500 385 532 473 482
600 445 630 557 570
Size MM F G H L
50 43 145 110 175
65 46 145 110 175
80 46 145 110 175
100 52 215 200 265
125 56 215 250
150 56 215 250
200 60 215 250
250 68 250 350
300 78 250 350
350 78 315 400
400 102 315 500
450 109 330 500
500 127 330 500
600 154 350 600

TORQUE - NEWTON METER
VALVE SIZE NB 50 65 80 100 125 150 200
PRESSURE Δ P-10 Bar 16 20 33 42 55 75 155

TORQUE - NEWTON METER
VALVE SIZE NB 250 300 350 400 450 500 600
PRESSURE Δ P-10 Bar 245 380 520 730 1030 1250 2050

MATERIAL OF CONSTRUCTION - OPTIONS
BODY DISC & SHAFT SEAT OPERATION ACCESSORIES
CAST IRON as per IS FG 220 DUCTILE IRON - ASTM A 65- 40 -18 TITANIUM-Gr. 1 / 2 /3 /4 PTFE BACKED BY EPDM RUBBER BY MANUAL HANDLEVER SOLENOID VALVES
CARBON STEEL as per ASTM A 216 GR. WCB/LCC S.S.316 /DUPLEX - PFA (TEFLON) ENCAPSULATED/LINED PTFE BACKED BY NEOPRENE RUBBER BY WORM GEAR BOX WITH HANDWHEEL LIMIT SWITCHES
S.S.304/316/316L as per ASTM A 351 CF8/CF8M/CF3M S.S.304/316/316L as per ASTM A 351 CF8/CF8M/CF3M PTFE BACKED BY SILICON RUBBER BY PNEUMATIC ROTARY ACTUATOR ELECTROPNEUMATIC POSITIONER
DUPLEX /SUPER DUPLEX - as per ASTM A 894 GR CE8MN /CE3MN DUPLEX /SUPER DUPLEX - as per ASTM A 894 GR CE8MN /CE3MN PTFE BACKED BY VITON RUBBER BY PNEUMATIC LINEAR CYLINDER SMART POSITIONER
ALLOY- 20 as per ASTM A 351 CN7M ALLOY- 20 as per ASTM A 351 CN7M TFM BACKED BY EPDM RUBBER BY ELECTRICAL ACTUATOR MANUAL OVERDRIVE
S.S.904-L S.S.904-L TFM BACKED BY NEOPRENE RUBBER BY WORM GEAR BOX WITH CHAIN PULLEY EXTENDED SHAFT ARRANGMENT
R - 55 R - 55 TFM BACKED BY SILICON RUBBER
HAESTALLOY C-22 as per ASTM A 894 CX2MW HAESTALLOY C-22 as per ASTM A 894 CX2MW TFM BACKED BY VITON RUBBER

PTFE / TFM VALVE SEAT BACK UP MATERIAL SELCTION

EPDMSILICONVITON
-50°C to +130°C-50°C to +170°C-50°C to +200°C

CUSTOMIZED MATERIAL
OF CONSTRUCTION/DESIGN
